8021 Aluminum Foil for Food Packaging and Battery

Alloy: 8021

Temper: H14,H16,H18,H19,H22,H24

Thickness: 0.006-0.2 mm

Width: 100-1600 mm

Application: food packaging, foil tray and battery soft pack

Send Inquiry Send Email

Products Category

Latest Application

Butter Aluminum Foil

Why butter aluminum foil is neededButter aluminum foil blocks oxygen, moisture, and light, effectively preventing butter from oxidizing and spoiling, preserving nutrients, and significantly extending its shelf life. High-end products can see their sh application
Aluminum Foil for Cable

Cables are usually composed of conductors, insulation layers, shielding layers, and sheaths. Aluminum foil for cable is generally located outside the insulation layer as part of the shielding layer. It fits tightly to the surface of the insulation la application
Aluminum Gold Foil Paper For Chocolate Wrapping

When is aluminum foil used for chocolate wrappingThe use of aluminium foil food for chocolate can be traced back to the early 20th century. In 1911, Swiss candy companies began to wrap chocolate with aluminum foil, gradually replacing the tin foil. T application

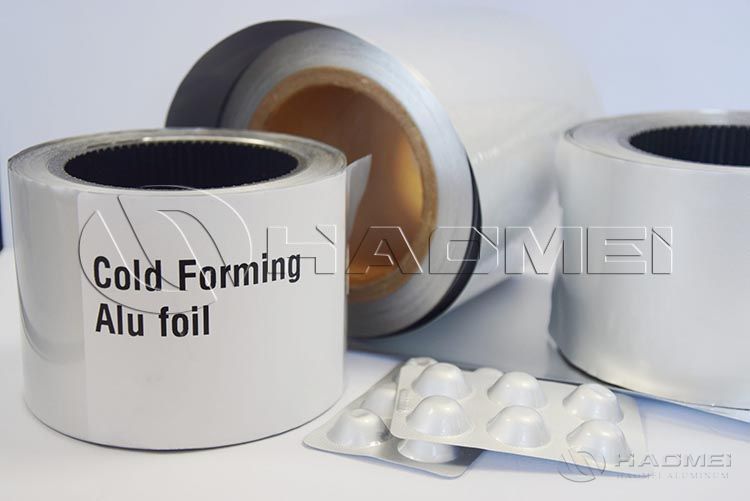

PVC Rigid Film and Aluminum Foil for Medicine Packaging

Haomei Aluminum provides different types of aluminum foil and plastic rigid films like PTP aluminum foil, cold forming foil, tropical foil, PVC rigid film, PE/PET film,etc. Best Price! Inquire now. application
Air Conditioner Aluminum Foil

Haomei Aluminum offers you different colors of air conditioner aluminum foil like hydrophilic aluminum foil, including1100/ 3003 /8006/8011 aluminum foil,etc. Learn more. application

Latest Blog

Aluminum or Tin Foil for Capacitor

Among the core materials of capacitors, the choice of electrode metal foil is particularly crucial. When metal foil is mentioned, many people first think of tin foil, but in the capacitor manufacturing industry, capacitor aluminum foil has long been the a Blog
What Are Uses of Heavy Aluminum Foil

Heavy aluminum foil is still a thin sheet material made of aluminum and aluminum alloys through rolling. According to industry standards, aluminum foil is usually classified based on thickness: aluminum foil with a thickness of less than 0.1 mm is ca Blog
Blister Packaging: Aluminum foil and PVDC PVC

Opening a medicine box, the pills and capsules encased in transparent "bubbles" always give a sense of reassurance; opening a snack bag, individually wrapped candies and nuts are often hidden in similar packaging. This packaging format, which co Blog
Heavy Duty Aluminum Foil For BBQ

Many people think of aluminum foil as just a "wrapping tool," but in a barbecue setting, heavy duty catering foil offers much more than that; it acts as a "personal protective shield" and a "smart heat conductor" for the Blog
1050 VS1060 Aluminum Foil

Composition Purity 1050 Aluminum Foil: Aluminum content is ≥99.5%, belonging to basic high-purity pure aluminum, with no additional alloying elements added, resulting in a simpler composition. 1060 Aluminium Foil: Aluminum content is ≥ Blog

Haomei Aluminum CO., LTD.

Tel/Whatsapp: +86-15978414719

Email: sale@alumhm.com

Website: https://www.alumfoils.com

Xin'an Industrial Assemble Region,Luoyang,Henan Province,China
Office Add: 1103, No.14 Waihuan Road, CBD, Zhengzhou, China

Product Introduction

What is 8021 aluminum foil

8021 aluminum foil is our best selling products. The aluminum foil thickness is 0.006mm-0.2mm, and the width can be controlled at 100-1600mm according to customer requirements. It is mainly used in food packaging and battery soft pack. It has excellent moisture resistance, shading and extremely high barrier ability.

8021 aluminum foil has undergone a number of tests such as bacteria and mold in the production process. The content of heavy metals should not exceed 0.25 parts per million to ensure that the finished product is non-toxic, tasteless, safe and hygienic. Therefore, 8021 aluminum foil is often used as medicinal aluminum foil, aluminum foil packaging, household aluminum foil,etc.

Specification of 8021 alu foil

Alloy	Temper	Thickness(mm)	Width(mm)	Application
8021	O,H14,H16,H18,H19,H22,H24	0.006-0.2	100-1600	food packaging, foil tray and battery soft pack

Mechanical Properties

Elastic Modulus	Elongation at Break	Fatigue strength	Poisson’s Ratio	Shear Modulus	Yield strength	Tensile Strength
70Gpa	2.3%	61 Mpa	0.33	26 Gpa	130 Mpa	160 Mpa

Features

1. It is safe, non-toxic, and of brushing water grade A.

2. Strong mechanical properties.

3. It is of excellent moisture-proof performance, shading and high barrier ability.

4. The surface is clean, uniform in color, no spots, no oil stains, no pinholes.

5. Its heavy metals do not exceed 0.25 parts per million.

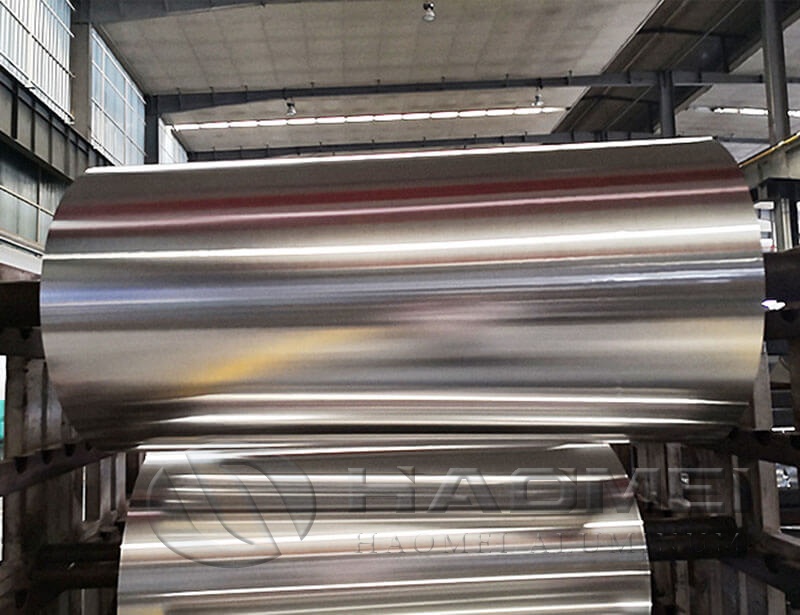

8021 aluminum foil jumbo roll.jpg

Applications

1. Cooking aluminum foil: It is mainly used for cooking in the kitchen. 8021 aluminum foil is an opaque packaging material. It is a good packaging material for products that need to be protected from sunlight such as margarine.

2. Pharmaceutical packaging: 8021 aluminum foil has excellent electrical conductivity and light-shielding properties, high moisture resistance, gas barrier properties and odor retention properties, which can block any gas, water vapor and light, and can effectively protect the packaged objects.

The medicine blister package made of it has the advantages of good protection performance, small storage space, low cost, light weight and convenient carrying, and is one of the widely used medicine packaging forms at present.

3. Square and cylindrical lithium-ion battery shells are mainly made of hard shells such as aluminum alloy and stainless steel, while the shells of soft packs are made of aluminum-plastic film.

Lithium-ion battery soft-pack aluminum-plastic film generally uses 8021 aluminum foil and 8079 aluminum foil. In the three-layer structure of the aluminum-plastic composite film, the aluminum foil is used as the intermediate layer, which mainly prevents the infiltration of water vapor from the outside of the battery and prevents the leakage of the internal electrolyte.

8021 aluminuim foil uses.jpg

8021 VS 8011 Aluminum Foil

1. 8011 aluminum foil contains Mn and Mg elements while 8021 aluminum foil does not contain these two elements, so the strength and corrosion resistance of 8011 aluminum foil are higher than 8021 aluminum foil.

2. Aluminum foil 8011 has high strength, but the corresponding elongation and puncture resistance in the same temper are lower than that of 8021 aluminum foil. Therefore, in drug packaging, the aluminum foil on the back of drug board is mostly 8021 aluminum foil. 8021 aluminum foil and 8079 aluminum foil are mostly used for blister packaging.

3. Aluminum foil 8011 is of wider applications, which can be used in s pharmaceutical packaging, food packaging, container foil, tape foil, cable foil, bottle cap material,etc. 8021 aluminum foil is relatively expensive and is mostly used for battery soft pack and pharmaceutical packaging.

aluminum foil jumbo roll producer.jpg
